Home > Products > rubber fenders > marine fender > Inflatable Marine Balloon Boat Rubber Fender

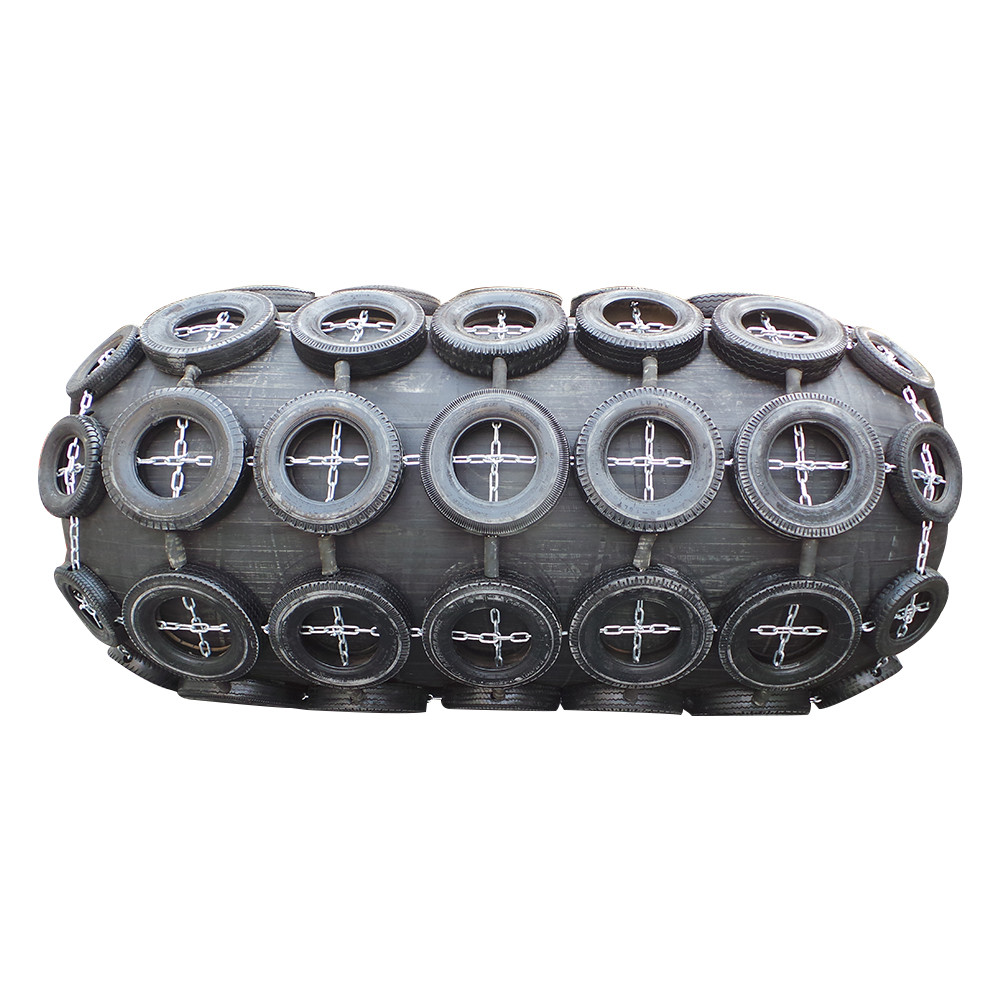

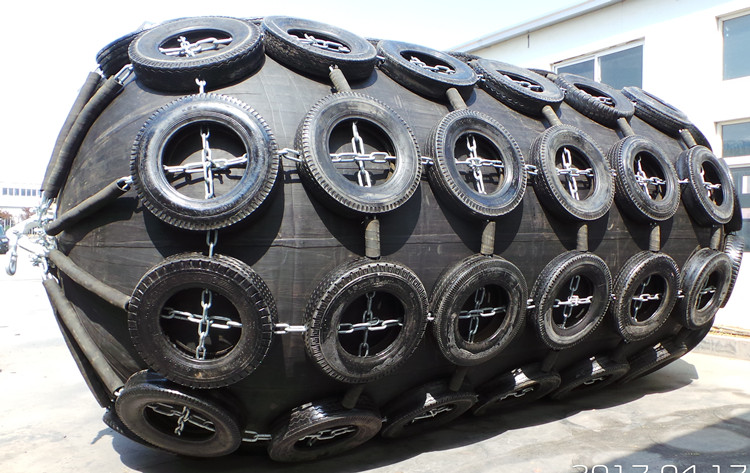

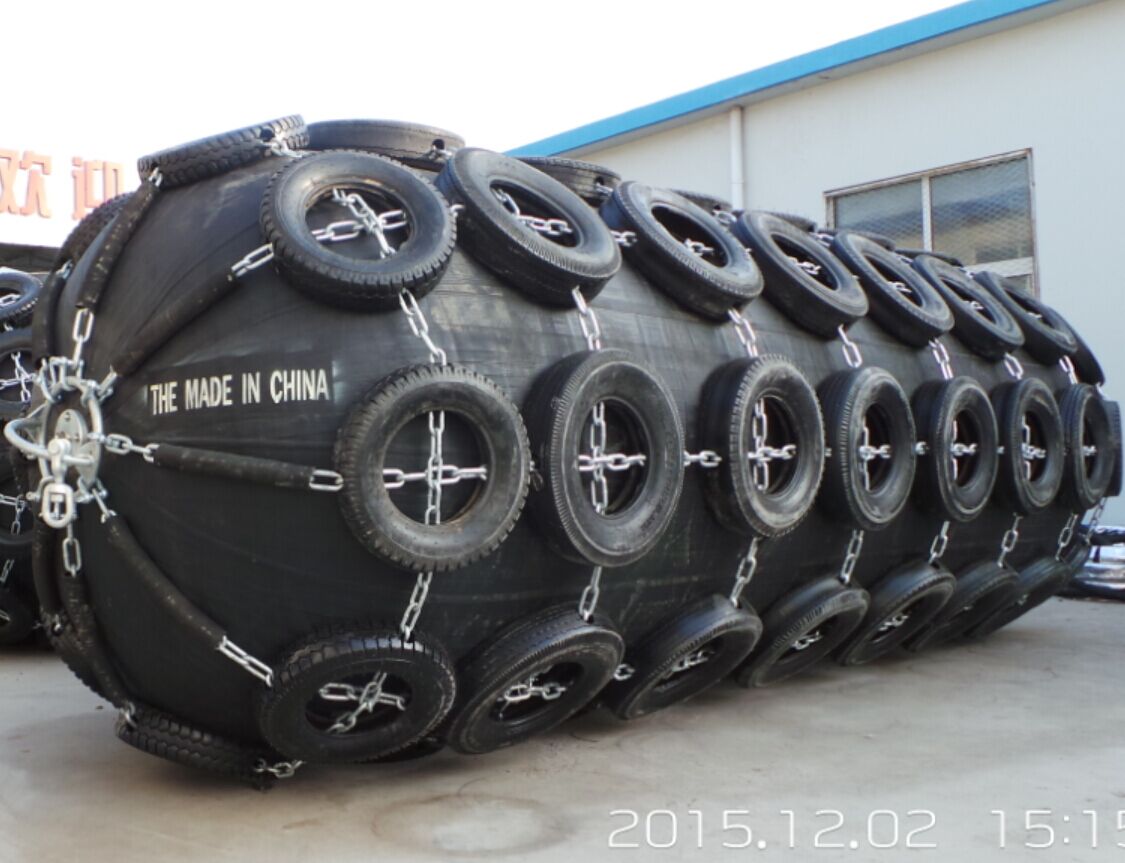

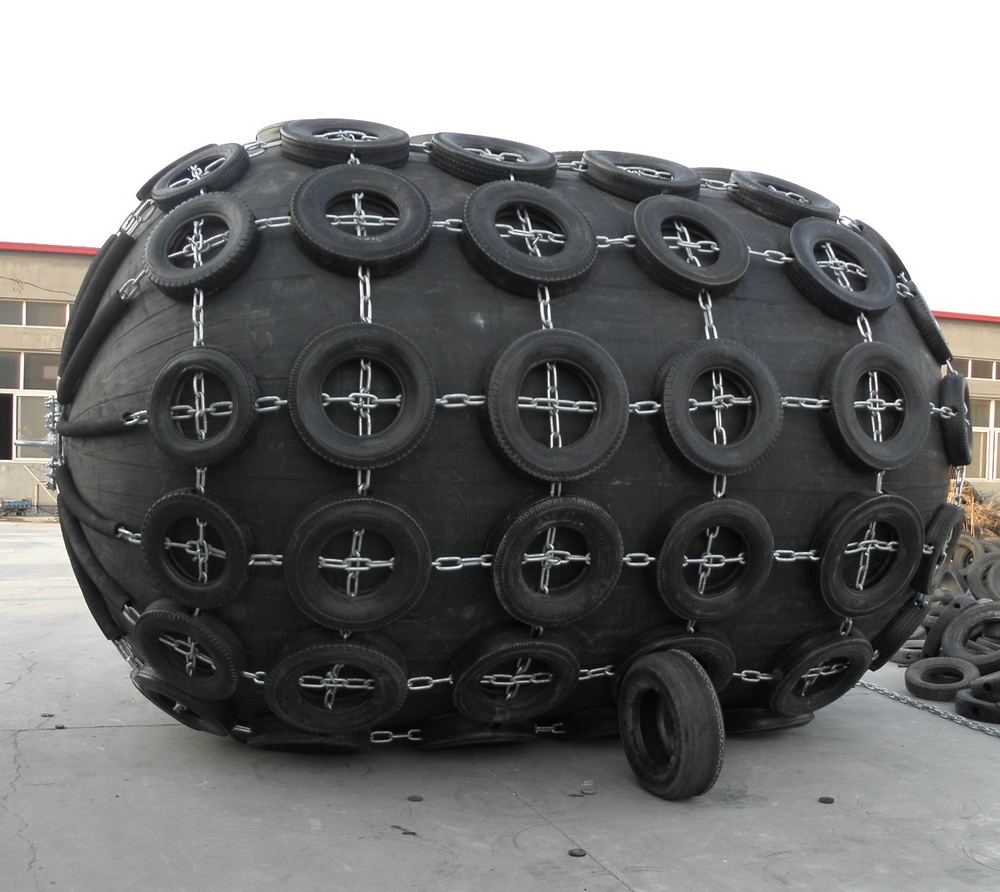

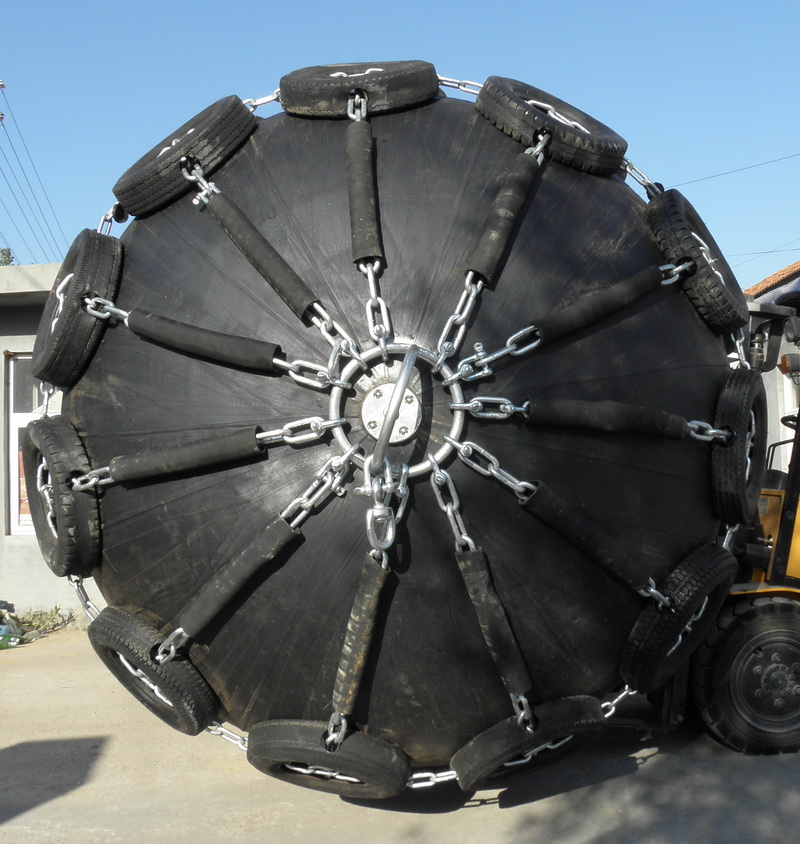

Inflatable Marine Balloon Boat Rubber Fender

Product Description

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{background-color:#59c7f9}#detail_decorate_root .magic-4{font-size:18px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:16px}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:611px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:611px}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:718px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:101px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:104px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:106px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:100px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:103px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:222px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:475px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:231px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:223px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:102px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:756.0160427807486px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:756.0160427807486px}#detail_decorate_root .magic-28{width:446px}#detail_decorate_root .magic-29{overflow:hidden;width:446px;height:300.9195906432749px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:-80.87466666666667px;margin-left:-2.3786666666666667px;width:446px;height:446px}#detail_decorate_root .magic-31{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-32{background-color:#2196ed;font-size:18px}#detail_decorate_root .magic-34{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-35{margin-bottom:0}#detail_decorate_root .magic-36{position:relative;width:100%}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:833px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:833px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:477.2727272727273px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:477.2727272727273px} Products Description INTRODUCTION OF MARINE Pneumatic Rubber Fender marine fender also called pneumatic fender, rubber fender , Yokohama fender, made by rubber & multi layers of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine Fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms. Product Details Specification
Some common sizes of our yokohma fender, customed sizes are also available
规格尺寸Specification
压缩变形60%(Compression Deflection 60%)
直径D(mm)
长度L(mm)
初始压力 Initial internal pressure 0.05MPa
初始压力 Initial internal pressure 0.08MPa
反力 RF(KN)
吸能GEA(KJ)
反力 RF(KN)
吸能GEA(KJ)
500
1000
64
6
85
8
600
1200
86
10
108
13
700
1500
137
17
180
24
1000
1500
182
32
239
45
1000
2000
257
45
338
63
1200
2000
297
63
390
88
1350
2500
427
102
561
142
1500
3000
579
153
761
214
1700
3000
639
191
840
287
2000
3500
875
308
1150
430
2500
4000
1381
663
1815
925
2500
5500
2019
943
2653
1317
3000
5000
2000
1050
2709
1571
3000
6000
2488
1312
3292
1888
3300
4500
1884
1175
2476
1640
3300
6000
2783
1675
3652
2338
3300
6500
3015
1814
3961
2532
3300
10600
5257
3067
6907
4281
4500
9000
5747
4752
7551
6633
Production Process Our Advantages Title goes here. 1 Compliance with ISO 17357:2002
2 More safety and reliability
3 Lower mooring forces
4 Adaptable to the tide
5 Low maintenance cost
6 Low reaction force and hull pressure
7 Most cost competitive system
8 Simple and low cosy installation
9 Various optional fitting

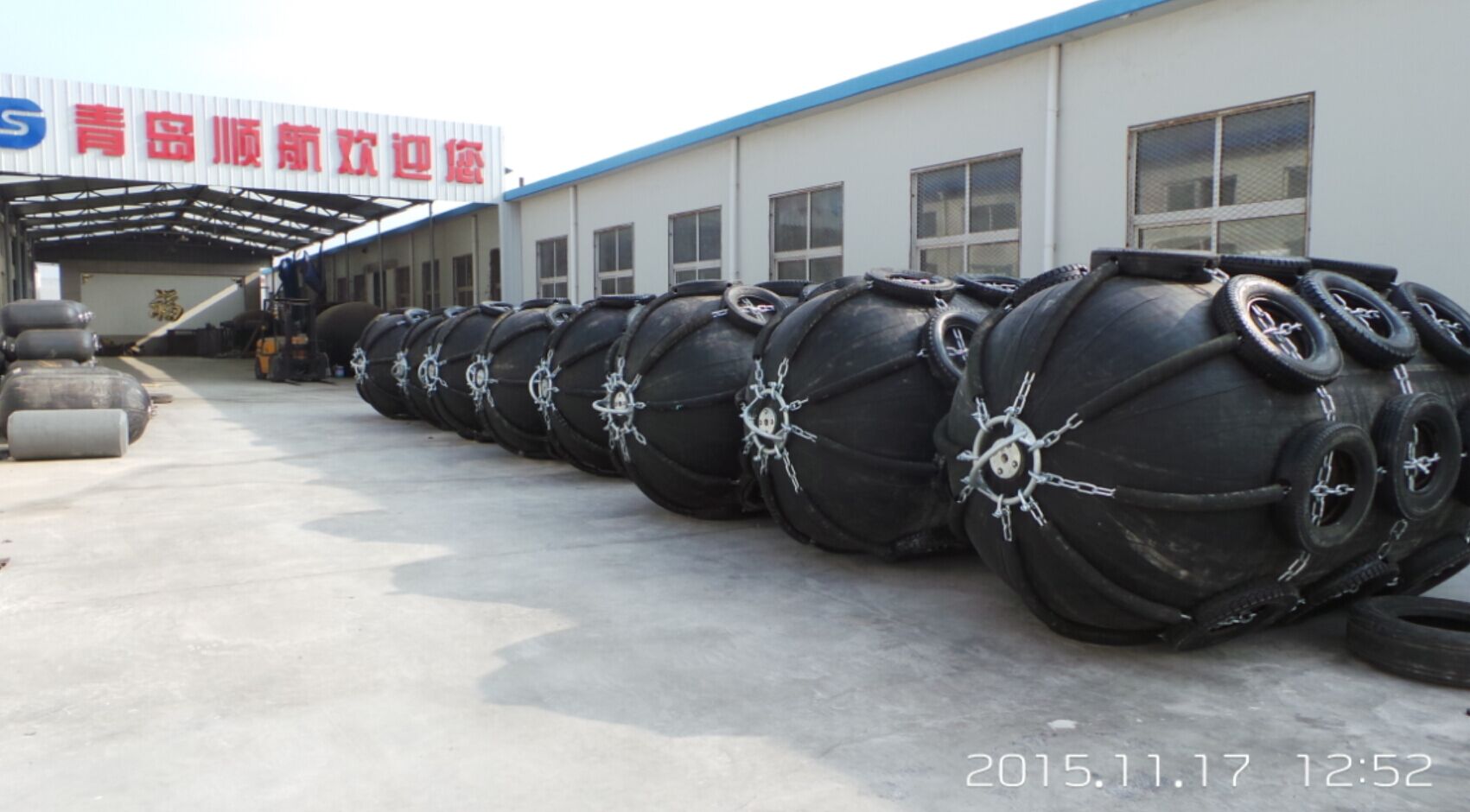

10 Advange against shearing force Product Display Company Profile Qingdao Shunhang Marine Supplies Co.,Ltd. located in Beilongwan industrial park, Jimo district, Qingdao, China.We are near Dalian, Yantai, Weihai port city, we have independent import and export right. Our company was established in 1995, long termly devoted to the research, development and production of Marine Airbags and Pneumatic Rubber Fenders. After years' of efforts, now our company has become a professional manufacturer of Marine Airbag , pneumatic Rubber Fender , EVA foam filled fender, ocean buoy, PVC Yacht Fender , integrating of scientific research, innovation and production. All the products are manufactured in strictly accordance with the ISO17357:2002 and ISO14409:2011. Our company has passed International Quality Management System ISO9001:2000 certificate. Our products have approved by China Classification Society(CCS), Bureau Veritas(BV), German Classification Society(GL) and Det Norske Veritas(DNV). Our company wins the trust of customers with high quality products, perfect after-sales service and well-deserved reputation.Our products have been exported to all over the world now. We have established long-term cooperative relationship with many shipyards, ship owners and trading companies. Our products have been exported to many countries in the world, such as Malaysia, Singapore, India, Indonesia, Philippines, Vietnam, Russia, Israel, Turkey, Brazil, USA, Australia, konya, Nigeria, etc. Qingdao Shunhang Marine Supplies Co.,Ltd. looking forward to the win-win cooperation and common development with you! Certifications FAQ 1."I have ships but don't know how to choose the size of Pneumatic Marine rubber fender, can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size
for you.

2."I want to try your Pneumatic Marine Rubber Fenders, but I never use it and don't know how to use, can you help me?"
Answer: Don't worry. We will send instruction book together with Pneumatic Marine rubber fender.

3."What's your MOQ?"
Answer: Our MOQ is 1PC.

4."How about the lifespan of your Pneumatic Marine rubber fender?"
Answer: Designed lifespan of our Pneumatic Marine rubber fender is 6 to 10 years.

5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.

6."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.

Contact us if you need more details on marine rubber fender. We are ready to answer your questions on packaging, logistics, certification or any other aspects about boat rubber fender、rubber fender. If these products fail to match your need, please contact us and we would like to provide relevant information.
